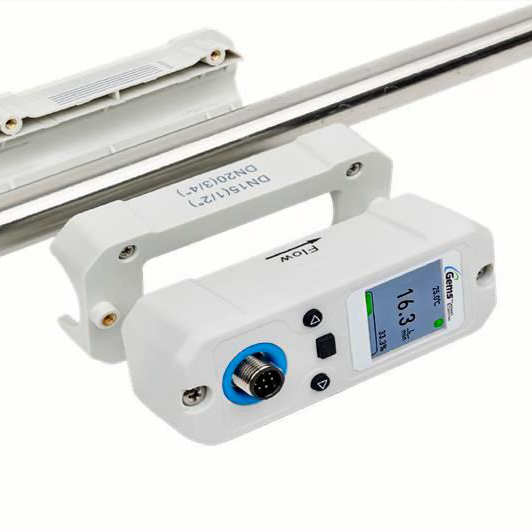

XFT Ultrasonic Flowmeter: Clamp-On Ultrasonic Flow Meter

XFT Ultrasonic Flowmeter: Clamp-On Ultrasonic Flow Meter

$560.00
SKU XFTDDAL100

Download Data Sheet

Lead Time: 6 Weeks

The XFT uses an external clamp-on installation method, which eliminates the need for additional pipe cutting or fitting reducer unions. This allows for quick installation and significantly reduces the mechanical design and installation complexity of the fluid system.
Once installed, it requires no additional maintenance for long-term use. The measurement accuracy remains unaffected over extended periods.

  • Support Fluid Media: Compatible with Various Cooling Liquids, DI Water, Oils, Hydrocarbons, etc.
  • Support Pipe: Stainless Steel, PVC, PPR (For other hard pipe materials, consult factory)
  • Flow Accuracy: Typical ±2% FS, Max ±3% FS
  • Fluid Temperature Range: 0° C to +60° C (+32° F to +140° F)
  • Temperature Accuracy: ±2° C (Pipe Wall)



Maximum Flow Rate

Pipe Size Diameter Range (OD) Gallons Per Minute Liters Per Minute
3/8” 16 to 18 mm 7.9 GPM 30 LPM
1/2” 18 to 23 mm 15.9 GPM 60 LPM
3/4” 23 to 28 mm 26.4 GPM 100 LPM
1” 28 to 37 mm 52.8 GPM 200 LPM
1.25” 37 to 44 mm 79.3 GPM 300 LPM
1.5” 44 to 52 mm 105.7 GPM 400 LPM



Applications

  • General automation machine cooling system
  • Industrial chiller flow monitoring
  • Liquid-cooled servers, CDU
  • Semi-conductor process equipment
  • Microwave/RF power supply cooling water monitor

Features

  • Clamp-on design, no need for pipe cutting or fitting conversion, no moving parts, no pressure drop, no contaminations
  • Elegant true-color LCD interface with rotatable orientation
  • Supports 16 to 52mm (3/8" to 1.5") pipe out diameters, compatible with stainless steel, PVC, PPR, and other similar materials
  • Additional MODBUS® RTU communication interface and analog temperature measurement
  • CE/REACH Certified
