Setra Lite is the simplest and easiest to use room pressure monitor in the market. It is designed to easily fit in a single gang electric box and is powered by Setra's legendary capacitive pressure sensor.
Setra Lite is about the size of a standard light switch, and just as a simple to install. It fits in a single-gang US electrical box, or international 86-box, and is powered by 24VAC or 24VDC. The reference side pressure pickup is integral with the Setra Lite faceplate. An analog output provides the building management system with the pressure signal for any additional trending or alarming needed.

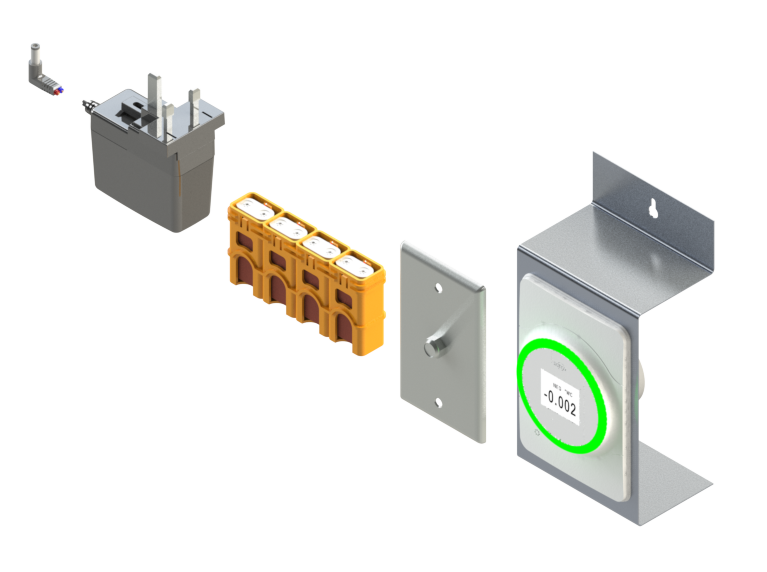

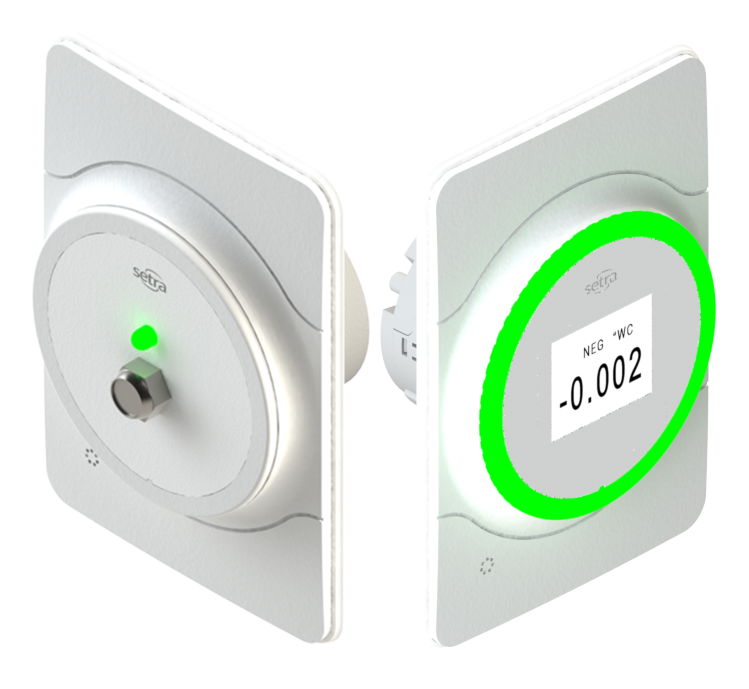

The Dual Alert version of the Setra Lite is the easiest way to keep personnel on both sides of the pressurized space informed of its status, with a visual alarm embedded in the pressure pick up port. The Quick Mount accessories enable less invasive installation with a single hole mounting bracket and a power adapter or battery pack for temporary installs.

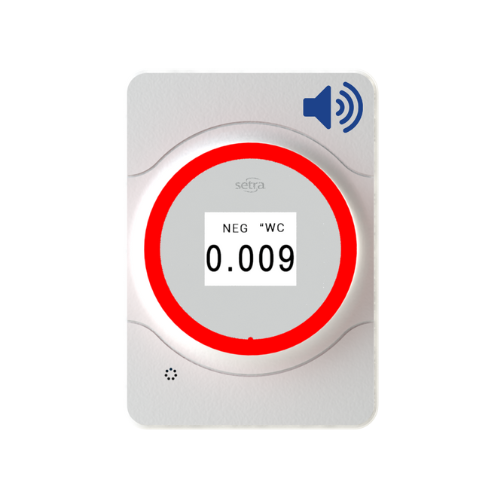

For local staff managing an area, Setra Lite has a light ring that is green or red and an optional audible alarm, clearly indicating room conditions. For the facility manager, using the Setra Lite means a reduction in preventative maintenance walk-by inspections because Setra Lite is monitoring the space.
Setra Lite also integrates seamlessly with the Setra FLEX environmental monitor. Mount Setra Lite at additional doors that enter the space and use an on-screen badge to display its value.
